BDM-III Series Explosion-proof Armored Double Seal Cable Gland

Multiple thread sizes and thread types available
Armored double-seal design
Suitable for both cable wiring and pipe wiring
Available in stainless steel, nickel-plated brass, and galvanized carbon steel
Suitable for harsh environments, including high temperatures, high humidity, and highly corrosive conditions

Executing Standards

IEC60079-0, IEC60079-1, IEC60079-7, IEC60079-31

EN60079-0, EN60079-1, EN60079-7, EN60079-31

Certificate No.

IECEx IECEx CML 17.0014X

ATEX CML 17 ATEX 1026X

EAC ЕАЭС RU C-CN.АЖ58.В .05190/24

Ex Marking

Ex db IIC Gb
Ex eb IIC Gb
Ex tb IIIC Db

II 2 G Ex db IIC Gb
II 2 G Ex eb IIC Gb
II 2 D Ex tb IIIC Db

1Ex db IIC Gb X
1Ex eb IIC Gb X
Ex tb IIIC Db X

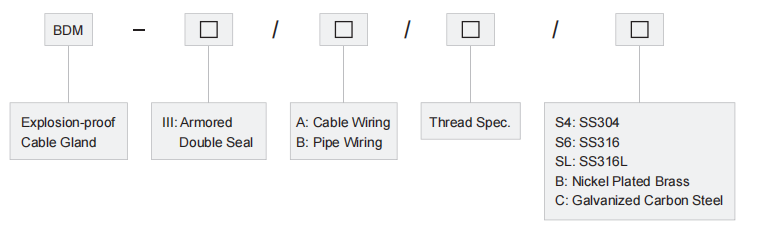

Material

SS304, SS316, SS316L

Nickel Plated Brass, Galvanized

Carbon Steel

IP Rating

IP66

Ambient Temperature

-50℃ ~ +80℃

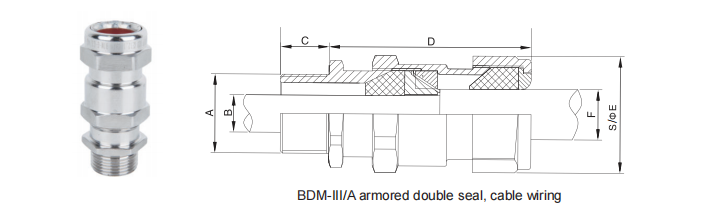

SN.	Available Thread A (mm)			Cable Outer Diameter B(mm)		Cable Outer Diameter F(mm)		Min. Thread Length C(mm)		Length D(mm)	Across Flats/Corners S/gE(mm)
SN.	M	NPT	G	Min.	Max.	Min.	Max.	M/G	NPT	Length D(mm)	Across Flats/Corners S/gE(mm)
1	M20x1.5	NPT 1/2″	G 1/2″	5	10	9	15	15	20	71	27(30)
2	M25x1.5	NPT 3/4″	G 3/4″	9	15	14	20	15	21	71	33(37)
3	M32x1.5	NPT 1″	G 1″	14	20	19	25	17	25	73	38(42)
4	M40x1.5	NPT 1 1/4″	G 1 1/4″	19	25	25	32	17	26	73	46(50)
5	M50x1.5 S	NPT 1 1/2″S	G 1 1/2″S	25	32	31	36	17	27	78	57(62)
6	M50x1.5	NPT 1 1/2″	G 1 1/2″	31	36	35	40	17	27	78	57(62)
7	M63x1.5 S	NPT 2″S	G 2″S	34	40	39	45	17	27	78	69(75)
8	M63x1.5	NPT 2″	G 2″	36	45	45	50	17	27	78	69(75)
9	M75x1.5 S	NPT 2 1/2″S	G 2 1/2″S	41	50	49	56	17	40	82	82(87)
10	M75x1.5	NPT 2 1/2″	G 2 1/2″	49	56	56	65	17	40	82	82(87)
11	M90x2	NPT 3″	G 3″	54	65	64	75	17	42	85	100(105)
12	M115x2 S	NPT 4″S	G 4″S	64	75	74	84	17	45	85	120(125)
13	M115x2	NPT 4″	G 4″	74	84	81	92	17	45	85	120(125)
14	M115x2 P	NPT 4″ P	G 4″ P	74	84	87	98	17	45	85	120(125)

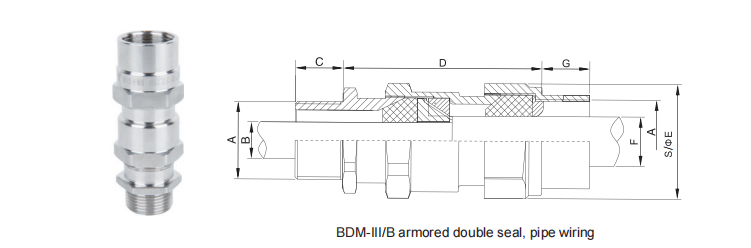

SN.	Available Thread A (mm)			Cable Outer Diameter B(mm)		Cable Outer Diameter F(mm)		Min. Thread Length C(mm)		Min. Thread Length G(mm)		Length D(mm)	Across Flats/Corners S/⊗E(mm)
SN.	M	NPT	G	Min.	Max.	Min.	Max.	M/G	NPT	M/G	NPT	Length D(mm)	Across Flats/Corners S/⊗E(mm)
1	M20x1.5	NPT 1/2″	G 1/2″	5	10	9	15	15	16	15	20	65	27(30)
2	M25x1.5	NPT 3/4″	G 3/4″	9	15	14	20	15	16	15	21	65	33(37)
3	M32x1.5	NPT 1″	G 1″	14	20	19	25	17	20	17	25	65	38(42)
4	M40x1.5	NPT 1 1/4″	G 1 1/4″	19	25	25	32	17	20	17	26	65	46(50)
5	M50x1.5 S	NPT 1 1/2″S	G 1 1/2″S	25	32	31	36	17	20	17	27	71	57(62)
6	M50x1.5	NPT 1 1/2″	G 1 1/2″	31	36	35	40	17	20	17	27	71	57(62)
7	M63x1.5 S	NPT 2″S	G 2″S	34	40	39	45	17	20	17	27	71	69(75)
8	M63x1.5	NPT 2″	G 2″	36	45	45	50	17	20	17	27	71	69(75)
9	M75x1.5 S	NPT 2 1/2″S	G 2 1/2″S	41	50	49	56	17	28	17	40	75	82(87)
10	M75x1.5	NPT 2 1/2″	G 2 1/2″	49	56	56	65	17	28	17	40	75	82(87)
11	M90x2	NPT 3″	G 3″	54	65	64	75	17	30	17	42	76	100(105)
12	M115x2 S	NPT 4″S	G 4″S	64	75	74	84	17	32	17	45	76	120(125)
13	M115x2	NPT 4″	G 4″	74	84	81	92	17	32	17	45	76	120(125)
14	M115x2 P	NPT 4″ P	G 4″ P	74	84	87	98	17	32	17	45	76	120(125)
