BZD130 Series Explosion-proof LED Light

Copper-free aluminum housing with powder-coated surface (RAL 7035)
Multiple lamp power options available
Internationally recognized brand lamp source
High IP rating
Enclosure types I, II, and III
Suitable for harsh environments, including high temperatures, high humidity, and highly corrosive conditions

Executing Standards	IEC60079-0, IEC60079-1, IEC60079-31 EN60079-0, EN60079-1, EN60079-31
Certificate No.	IECEx LCIE 17.0072X LCIE 17 ATEX 3062X		ЕАЭС RU C-CN.АЖ58.В .05695/24
Ex Marking	Ex db IIC T5 Gb Ex tb IIIC T95℃ Db	II 2 G Ex db IIC T5 Gb II 2 D Ex tb IIIC T95℃ Db	1Ex db IIC T5 Gb X Ex tb IIIc T95℃ Db X
Enclosure Material	Aluminum alloy, powder-coated surface
Light diffuser material	Toughened glass, stands 4J impact
Rated voltage	100~240V AC, 50/60Hz
Lamp type	LED lamp
Lamp power	20W, 30W, 40W, 60W, 80W, 100W, 120W
Power Factor	≥0.95
Luminous Efficiency	≥ 120 lm/W
Color Temperature	5500K~6500K
Color Rendering Index	Ra≥75
IP Rating	IP66
Ambient Temperature	-40℃~ +55℃ / _55℃~ +55℃(EAC)
Cable Entry	1-M25x1.5

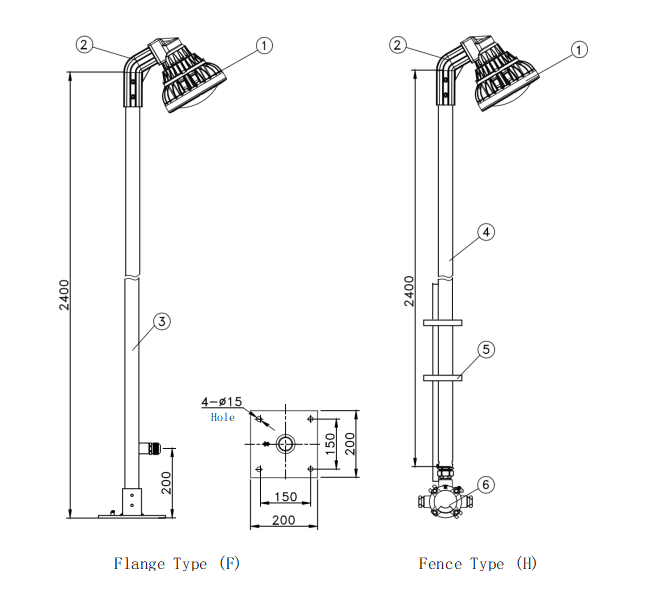

SN.	Description	Remark
1	CCd92 Series Explosion-proof Gas Discharge Light	—
2	Ex connector BGJ-M25×1.5C	By user
3	Ex junction box EJB101-M25×1.5, two way (IIC/ID)	Not provided if not required
4	Ex connector BGJ-M25×1.5B	By user
5	Straight pipe M25×300 mm	Deliver with goods
6	Bend pipe 150°, M25×300 mm	Deliver with goods
7	CC type rigging screw buckle M6	Deliver with goods
8	Chain (L=450 mm)	Deliver with goods
9	Expansion bolt M6	Deliver with goods
10	Bend pipe 90°, G3/4″×300 mm	Deliver with goods
11	Bend pole	By user
12	Flange type pole, G1 1/4″	By user
13	Fence type pole, G1 1/4″	By user
14	U clamp, G1 1/4″, Q235	By user
15	Ex junction box EJB101-M25×1.5, three way (IIC/ID)	Not provided if not required
