NGd Series Explosion-proof Flexible Conduit
- Multiple product types available
- Multiple thread sizes available
- Multiple lengths available for selection
- Suitable for harsh environments, including high temperatures, high humidity, and highly corrosive conditions
- Widely used for flexible connections between explosion-proof junction boxes, lighting fixtures, and pipes
- Provides reliable cable protection

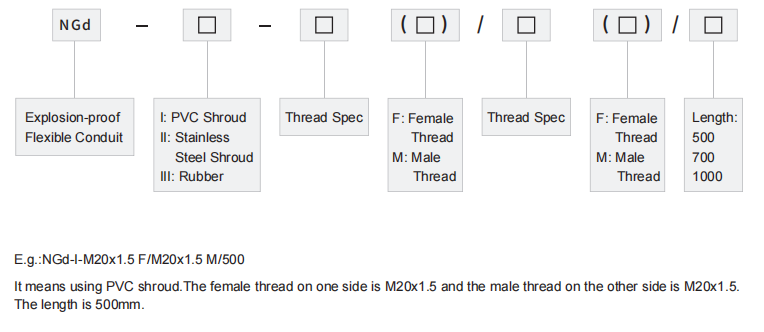

- Model Definition
- Technical Parameters

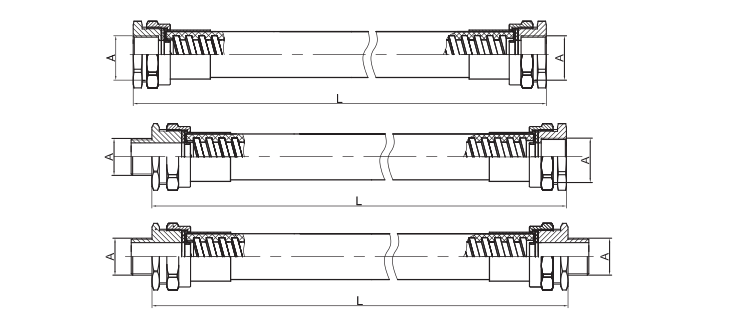

- Dimension Table
Technical Specifications
| SN. | Thread SpecA | Diameter (mm) |
Inner Diameter (mm) | Length L(mm) | Min. Bending Radius(mm) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| M | NPT | G | l | ll & lll | ||||||
| 1 | M20×1.5 | 1/2″ | 1/2″ | 15 | 13 | 14 | 500 | 700 | 1000 | 80 |
| 2 | M25×1.5 | 3/4″ | 3/4″ | 20 | 19 | 17 | 500 | 700 | 1000 | 110 |
| 3 | M32×1.5 | 1″ | 1″ | 25 | 23 | 23 | 500 | 700 | 1000 | 145 |
| 4 | M40×1.5 | 1 1/4″ | 1 1/4″ | 32 | 28 | 30 | 500 | 700 | 1000 | 180 |
| 5 | M50×1.5 | 1 1/2″ | 1 1/2″ | 40 | 32 | 35 | 500 | 700 | 1000 | 210 |
| 6 | M63×1.5 | 2″ | 2″ | 50 | 40 | 47 | 500 | 700 | 1000 | 250 |
| 7 | M75×1.5 | 2 1/2″ | 2 1/2″ | 70 | - | 59 | - | 700 | 1000 | 350 |
| 8 | M90×2 | 3″ | 3″ | 80 | - | 72 | - | 700 | 1000 | 400 |
| 9 | M115×2 | 4″ | 4″ | 100 | - | 97 | - | 700 | 1000 | 500 |
