Application Designed for Explosive Atmospheres Zone 1 and Zone 2; Designed for Combustible Dust Zone 21 and Zone 22; Designed for IIA, IIB and IIC Groups Explosive Atmospheres; Designed for Temperature Classifications with T1~T6; T5 Bi-Pin Tube; Widely Used in Oil Refinery, Storage, Chemical, Pharmaceuticals, Military Industries, Etc.

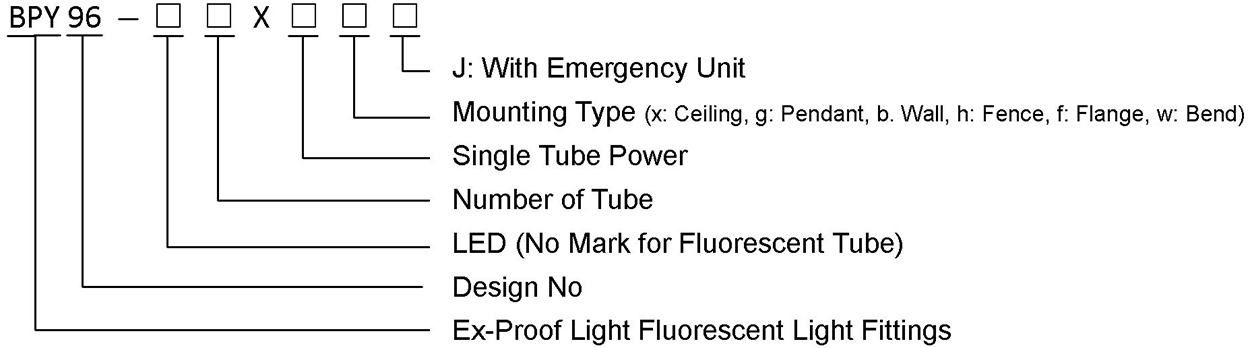

Ordering References

The Lamp is Included Inside When Delivery, Can be Used While It is Powered.

Only One Tube Works Under Emergency Conditions;

For Example: If Buy BPY96 Ex-Proof Fluorescent Light Fittings, Two 2X28 Tubes, Ceiling Type, with Emergency Unit, the Model Shall Be: BPY96-2x28gJ

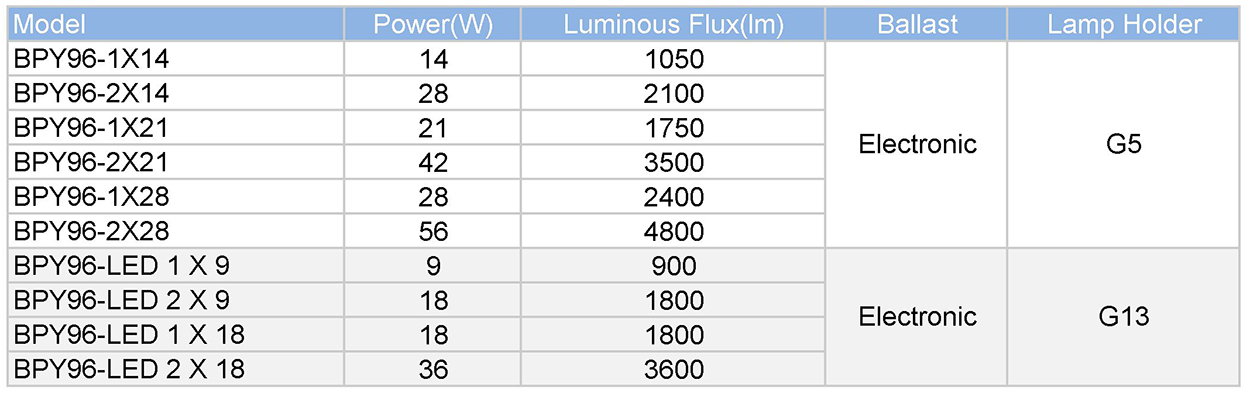

Selection Table

Technical Parameters

Compliance with: GB 3836.1, GB 3836.2, GB 3836.3, GB 12476.1, GB12476.5, IEC60079-0, IEC60079-1, IEC60079-7, IEC61241-0, IEC61241-1;

Explosion Protection: Ex d e IIC T6 Gb/Ex tD A21 IP66 T80℃;

Rated Voltage: Fluorescent Tube AC220V, 50Hz; LED AC220V 50/60Hz

Lamp: T5 Bi-Pin Fluorescent Tubes (1X14W, 2X14W, 1X21W, 2X21W, 1X28W, 2X28W) G5 Lamp Holder, Electronic Ballast;

LED (1 X 9W; 2 X 9W; 1 X 18W; 2 X 18W) G13 Lamp Holder;

Ingress Protection: IP66;

Corrosion Resistance: WF1;

Cable Entries: G1/2″;

Cable Outer Diameters: Φ6mm~Φ10mm;

Emergency Parameters:

Charging Time: ≤24h;

Emergency Starting Time: ≤0.25s

Emergency Lighting Duration: ≥90min

Features

Enclosure is Die Casted of Aluminum Alloy with High Voltage Electrostatic Powder Coated Surface After Shot Blasting;

High Strength Toughened Glass Transparent Tube;

Exposed Fasteners are of Stainless Steel with High Corrosion Resistance Property;

Steel Guards are Treated by Dip Plastic with Reliable Corrosion Resistance;

T5 Bi-Pin Fluorescent Tube as Lamp;

T5 Fluorescent Tube with Features of High Lighting Efficiency, Long Service Life (20000H) and Good Color Rendition (Ra＞85);

Electronic Ballast with High Power Factor Cosφ≥0.95;

Modular Plug-In Design Only Need to Open End Cover and Pull Out Core to Change Tubes;

Light Fittings with Emergency Unit are Integrated, Which is Easy to Install and Save Space;

Light Fittings with Emergency Unit Will Automatically Shift to Emergency Lighting Model When Normal Power is Failed;

Over Charging and over Discharging Protection Circuit Inside Emergency Unit;

Lamp Cavity is of Spigot and Cementing Explosion Proof Structure, Wiring Cavity Adopts Increased Safety Structure;

Internal and External Earthing Bolts Ensure Reliable Earthing;

Steel Pipe or Cable Wiring.
