Application Designed for IIA, IIB and IIC Groups Explosive Atmospheres; Temperature Classifications T1~T6, Zone 1 and Zone 2. For Combustible Dust Zone 21 and Zone 22; Designed for the Damp Sites with High Protection Level Demand; Widely Used in Explosive Hazardous Locations Such as Oil Refinery, Storage, Chemical, Pharmaceuticals, Military Industries, Etc.

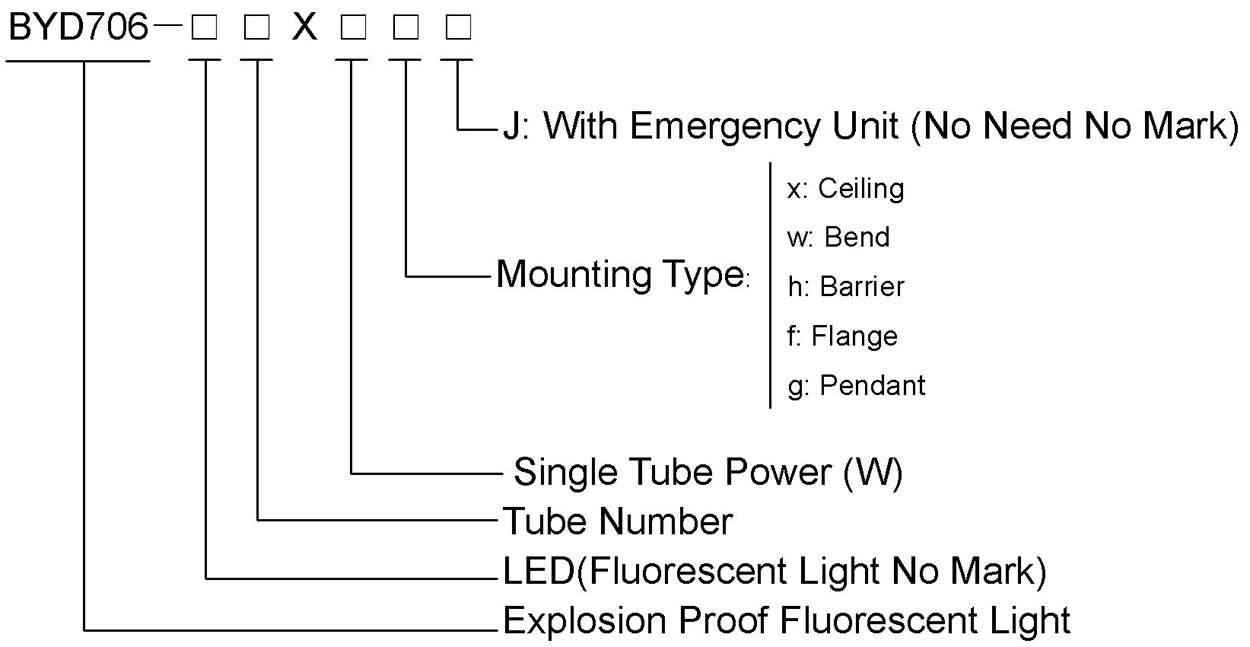

Ordering References

The Lamp is Included Inside When Delivery, Ready for Using as Plugged In Power.

Technical Parameters

Compliance with: GB3836.1、GB3836.2、GB12476.1、GB12476.5

Explosion Protection: Ex d IIC T6 Gb / Ex tD A21 IP66 T80℃

Rated Voltage: AC220V, 50Hz/60Hz

Lamp Type: LED, Fluorescent

Power:

T5 Fluorescent Tube: 1X14W, 1X28W, 2X14W, 2X28W

T8 Fluorescent Tube: 1X18W, 1X36W, 2X18W, 2X36W

LED Tube: 1X9W, 2X9W, 1X18W, 2X18W

Emergency Parameters:

Emergency Starting Time: ≤0.25s

Charging Time: 24h

Emergency Power: 9W, 14W, 18W, 28W, 36W

Emergency Lighting Duration: ≥90min.

Ingress Protection: IP66

Cable Entry: G3/4";

Cable Outer Diameters: Φ9mm~Φ14mm;

Features

Shell is Made of High Strength Aluminum Alloy with Magnesium and Titanium Content Not More Than 7.5%, High Pressure Casting Molding. After Blasting Treatment, Then High-Pressure Electrostatic Plastic-Spray the Surface. Has Good Impact Resistance and Weather Resistance. It Can Withstand Impact of No Less Than 7J and Use in Strong Corrosive Environment.

Transparent Tube with High Strength Tempered Glass, High Transmittance, Resistance to Impact, Can Withstand the Impact of 4J.

Stainless Steel Exposed Fasteners.

Equipped with the Famous Brand Fluorescent Lamp / LED Lamp, Long Life and High Light Efficiency.

Modularized Intercalation Design, Only Need to Release the Connection Cavity Cover, Draw Out the Core Components to Replace the Lamp, Convenient Installation and Later Maintenance.

Equipped with the Emergency Device, Automatically Switches to the Emergency Lighting Condition When Loses Power.

In the Emergency Device, the Circuit Protection Functions Such as Overcharging and Overcharging are Designed.

Without Electromagnetic and Ultraviolet Radiation, It Can Provide High Quality Lighting and Health Protection for Users Working in the Room for a Long Time.

Steel Pipe or Cable Wiring.
