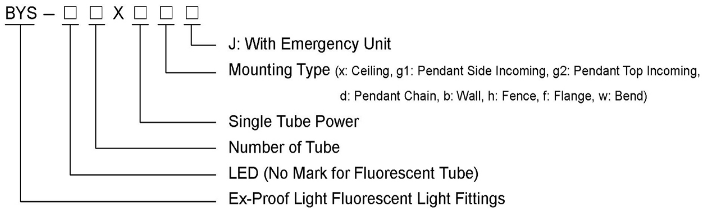

ApplicationDesigned for Explosive Atmospheres Zone 1 and Zone 2; Designed for Combustible Dust Zone 21 and Zone 22; Designed for IIA, IIB and IIC Groups Explosive Atmospheres; Designed for Temperature Classifications T1~T4; Designed for Explosive Hazardous Locations Such as Oil Refinery, Storage,Chemical, Pharmaceuticals, Textile, Painting, Military Industries, Etc. Model Code |
The Lamp is Included Inside When Delivery.
Only One Tube Works Under Emergency Conditions.

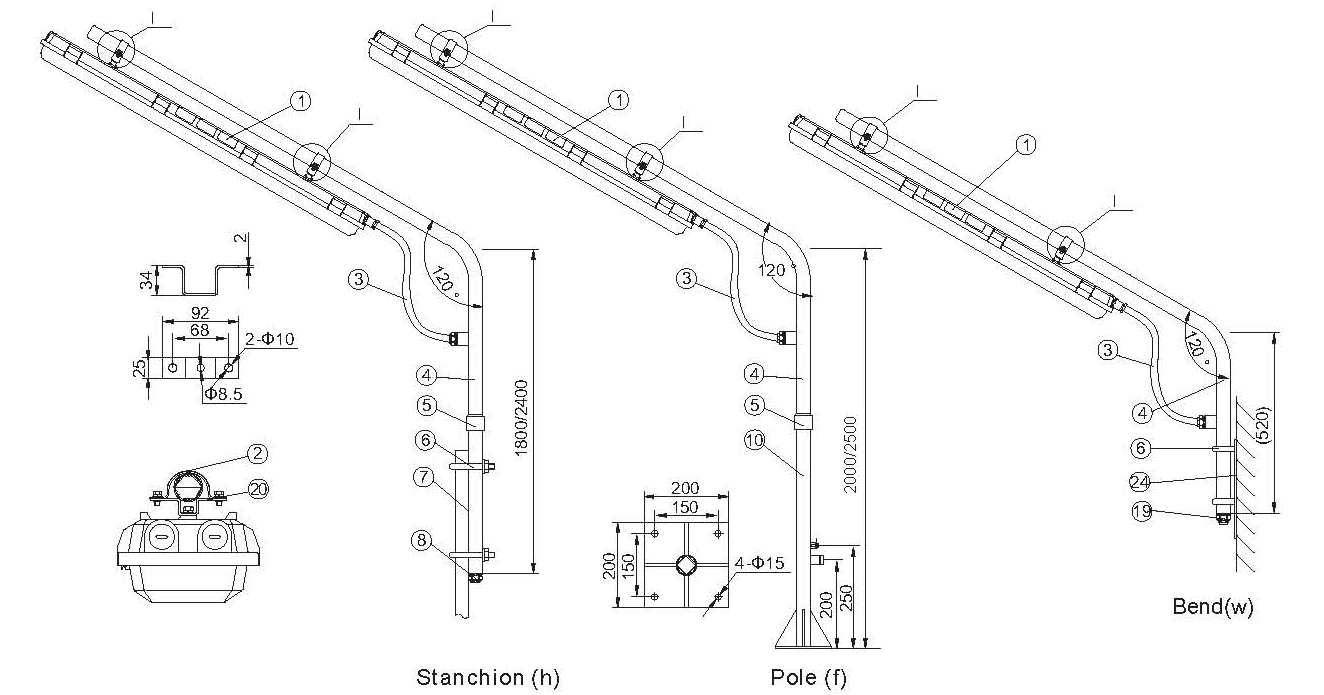

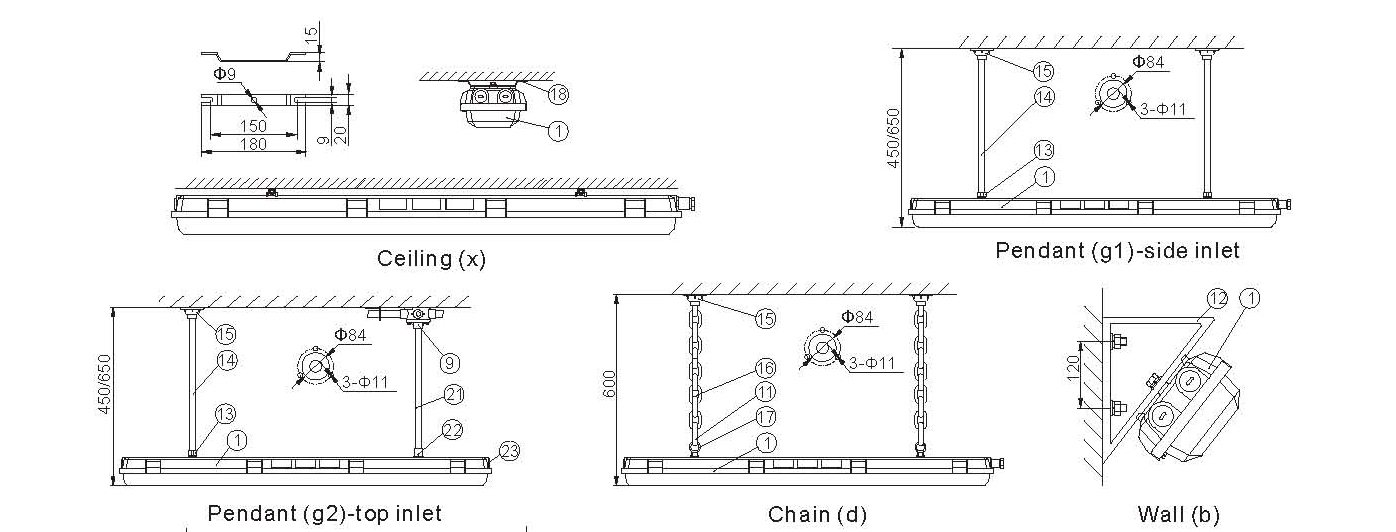

The Pendant Type is Side Entry Type. Please Indicate When Need Top Inlet.
For Examples: If Need the Top Inlet Pendant Type BYS Explosion Proof Corrosion Resistance Polyester Fluorescent Fitting, 2X28W, with Emergency Unit, the Model Shall Be: BYS-2X28g2J.
Compliance With: GB 3836.1, GB 3836.2, GB 3836.3, GB 3836.9, GB 12476.1, GB12476.5
IEC60079-0, IEC60079-1, IEC60079-7, IEC60079-18, IEC61241-0, IEC61241-1
Explosion Protection: Ex d e mb IICT4 Gb / Ex tD A21 IP66 T80℃
Rated Voltage: Fluorescent Tube AC220V, 50/60Hz; LED AC100~240V 50/60Hz

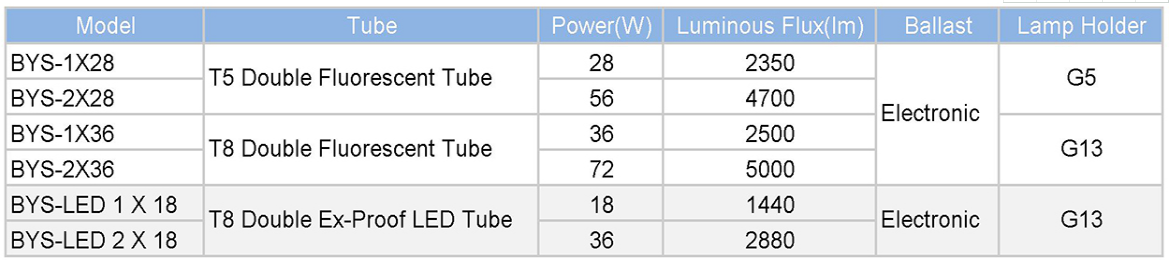

Lamp:T8 Bi-Pin Fluorescent Tube (1X36W,2X36W) G13 Lamp Holder with Electronic Ballast
T5 Bi-Pin Fluorescent Tube (1X28W, 2X28W) G5 Lamp Holder with Electronic Ballast
T8 Bi-Pin LED Tube (1X18W,2X18W) G13 Lamp Holder
Ingress Protection: IP66
Corrosion Resistance: WF2
Cable Entries: M25 X 1.25 (Cable Laying Wire, Standard Equipment)
G3/4″ (Steel Pipe or Flexible Coupling Laying Wire, Customized Equipment)
Cable Outer Diameters: Φ9Mm~Φ14mm
Battery Charging Time: ≤24h
Emergency Starting Time: ≤0.25s
Emergency Lighting Duration: ≥90min

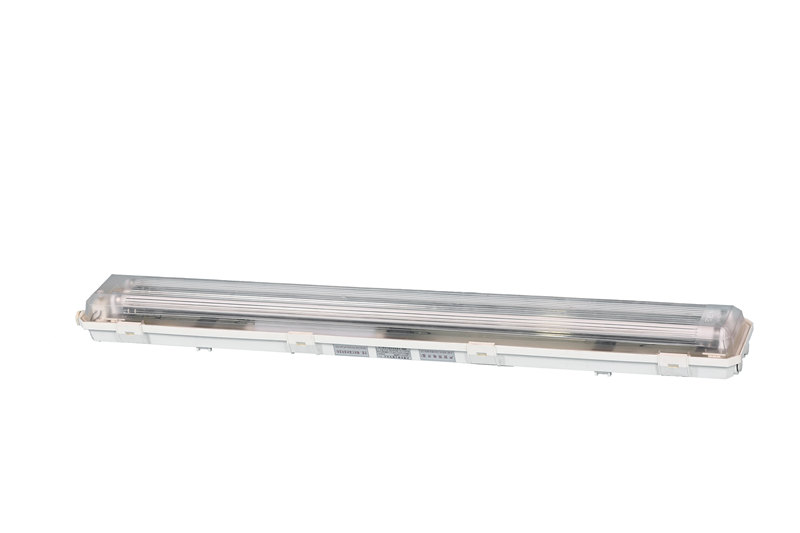

Enclosure is Injected of Polycarbonate Alloy with High Strength, Impact Resistance, Corrosion Resistance, Heat Resistance and Cold Resistance;
Lamp Cover is Injected of Polycarbonate with Good Lighting Transmittance and Impact Resistance;
Light Fitting is Designed in Double Sealing Structure with Good Water Proof and Dust Proof;
Reflector is Designed in Special Double Parabolic to Improve Light Efficiency Greatly;
Enclosure and Lamp Cover Adopt Plug-In Structure are Easy to Open and Close Tightly;
With Clamping-Type Terminals, Just Need to Open Cover, and Then Connect Wire;
Name Brand Fluorescent Tubes Inside with Long Service Life and High Light Efficiency;
Built in Exclusive Explosion Proof Electronic Ballast;
Built-In Disconnecting Switch and De-Energizing When Open Cover to Assure the Safe Operation;
Lighting with Emergency Unit Will Automatically Shift to Emergency Lighting Status When Normal Power is Failed;
Special Designed over Charging and over Discharging Circuit Inside Emergency Unit;
Steel Pipe or Cable Wiring.
